COMPOSITE MATERIALS

GLASS

---

E-glass (electrical-grade glass fiber) is one of the most widely used reinforcement materials in composite applications due to its excellent balance of strength, durability, and cost-efficiency. It offers strong mechanical performance along with good electrical insulation and corrosion resistance, making it suitable for a wide range of industrial uses. E-glass is commonly used in forms such as woven fabrics and multiaxial reinforcements across automotive, marine, construction, and general manufacturing sectors.

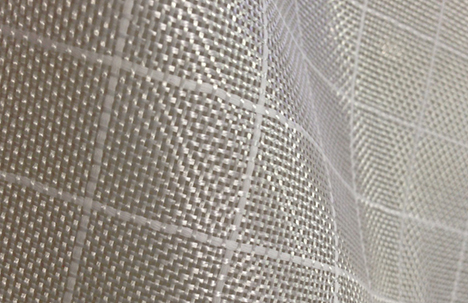

• Woven Fabric

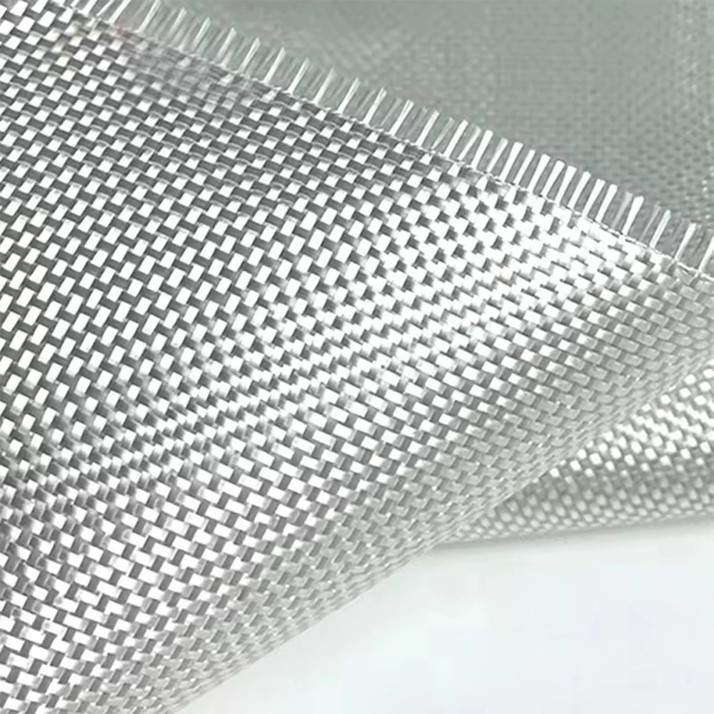

  E-GLASS FABRIC
  Product Code	Weight (g/sqm)	Style	Thickness (MM.)	Density (yarn/in)	Warp	Weft	Width (mm)	Roll Length (m)
  304-HS	30	Plain	0.04	51*31	D450 1/0	D900 1/0	1030	1000
  L06P-HS	60	Plain	0.08	24*22	G150 1/0	G150 1/0	1000/1270	200
  L09P-HS	92	Plain	0.09	35*31	G150 1/0	G150 1/0	1000/1270	250
  1400-HS	78	Plain	0.15	14*14	G75 1/0	G75 1/0	635/1000	250
  1200-HS	98	Plain	0.15	17.5*18	G75 1/0	G75 1/0	1018	250
  3116-HS	107	Plain	0.1	60*58	D450 1/2	E225 1/0	1370	550
  3024-HS	150	Plain	0.15	30*24	G75 1/0	G75 1/0	1000/1270	200
  2190-HS	185	Plain	0.25	17.5 *16	G37 1/0	G37 1/0	1150	100
  2100-HS	195	Plain	0.2	17.5*18	G37 1/0	G37 1/0	1018	200
  418-HS	295	Plain	0.35	17.5*18	G75 1/3	G75 1/3	1020	200
  1522P-HS	130	Custom	0.13	25*22	G 150 1/0	Innegra/G150	1270	200
  38B0-HS	380	Herringbone	0.35	16*16	DR300	DR300	1250	100
  4170-HS	570	Plain	0.5	17*17	G37 1/0	G37 1/0	1040	50
  WR330-HS	330	Plain	0.3	14*14	300 Tex	300 Tex	1000	100
  WR400T-HS	400	2x2 Twill	0.3	19*24	G37 1/0	300 Tex	1000	50

  GLASS UNIDIRECTIONAL FABRIC
  Product Code	Weight (g/sqm)	Style	Thickness (MM.)	Density (yarn/in)	Warp	Weft	Width (mm)	Roll Length (m)
  UG300	300	Unidirectional	0.32	9*3	DR 900	Thermopl. 44 Tex	1000	100
  PUG500	500	Unidirectional					1000

  CHOPPED STRAND MAT
  Product Code	Weight (g/sqm)	Width (mm)	Thickness (MM.)	Roll Weight (kg)	Moisture (%)	Binder Content (%)	Area per Roll (Sqm.)	Type
  CSM30P	300	1040		33	< 0.2	3.5	110	Powder
  CSM45P	450	1040		33	< 0.2	3.4	73	Powder
  CSM60P	600	1040	-	33	< 0.2	3.5	55	Powder
  CSM10E	100	1270	-	34	< 0.2	3.5	340	Emulsion
  CSM30E	300	1040	-	33	< 0.2	3.4	110	Emulsion
  CSM45E	450	1040		33	< 0.2	3.5	73	Emulsion
  CSM60E	600	1040		33	< 0.2	3.5	55	Emulsion

  Hybrid and S-glass

  HI-CLEAR GLASS FABRIC
  Product Code	Weight (g/sqm)	Style	Thickness (MM.)	Density (yarn/in)	Warp	Weft	Width (mm)	Roll Length (m)
  6522T-N2	125	Plain	0.15	24*22	G150 1/2 (S-glass)	G150 1/2 (S-glass)	685/762	100
  16522T-N2	125	Plain	0.15	24*22	G150 1/2 (E-glass)	G150 1/2 (S-glass)	685/762	100

  HYBRID AND S-GLASS FABRIC
  Product Code	Weight (g/sqm)	Style	Thickness (MM.)	Density (yarn/in)	Warp	Weft	Width (mm)	Roll Length (m)
  B135P-GR	135	Plain	0.15	24*20	Basalt 80 tex	Basalt 80 tex	685/762	50
  BH160P-GR	160	Plain	0.15	24*20	Basalt 80 tex	Hemp 100 tex	685/762	50
  CN15P-GR	150	Plain	0.3	13*15	Innegra	3K carbon	1000	50
  6522T-N2	125	Plain	0.15	24*22	G150 1/2 (S-glass)	G150 1/2 (S-glass)	685/762	100
  16522T-N2	125	Plain	0.15	24*22	G150 1/2 (E-glass)	G150 1/2 (S-glass)	685/762	100

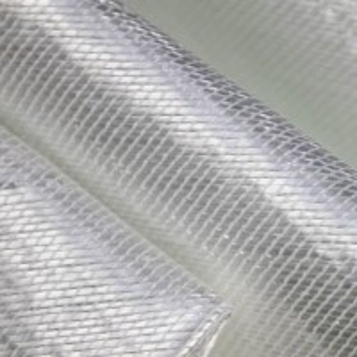

• Multiaxials

  GLASS BIAXIAL
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (KG)
  DB800-C	Biaxial +/-45	800
  DB1200-C	Biaxial +/-45	1200
  DB160-E	Biaxial +/-45	160	0.18	1270	52
  DB220-E	Biaxial +/-45	220	0.24	1270	52
  DB240-E	Biaxial +/-45	240	0.27	1270	52
  DB400-E	Biaxial +/-45	400	0.43	1270	52
  DB600-E	Biaxial +/-45	600		1270	50

  GLASS QUADAXIAL
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (KG)
  QX600E	Quadaxial 0/+45/90/-45	600	-	1270	50
  QX800E	Quadaxial 0/+45/90/-45	800	-	1270	50
  QX1200E	Quadaxial 0/+45/90/-45	1200	-	1270	50
  QX1600E	Quadaxial 0/+45/90/-45	1600	-	1270	50

  Surf Fabrics and Tape
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (m)
  CB600/300	-	900	-	1000	-

• Surf/Tape

  FIBER GLASS TAPE
  Product Code	Weight (g/sqm)	Width (mm)	Roll Length
  E-Glass tape	200 gsm	25 mm	30 m
  E-Glass tape	200 gsm	40 mm	30 m

  HI-CLEAR GLASS FABRIC
  Product Code	Weight (g/sqm)	Style	Thickness (MM.)	Density (yarn/in)	Warp	Weft	Width (mm)	Roll Length (m)
  P303-N3	25	Plain	0.035	60*52	D900 1/0	D900 1/0	1030	200
  P307-N3	48	Plain	0.065	60*47	E450 1/0	E450 1/0	1040	200
  L05P-N2	48	Plain	0.065	60*47	D450 1/0	D450 1/0	1040	200
  L06P-N2	60	Plain	0.08	24*22	G150 1/0	G150 1/0	1000/1270	200
  8P1-N2	82	Plain	0.09	30*32	G150 1/0	G150 1/0	1020/1270	200
  L09P-N2	92	Plain	0.09	35*31	G150 1/0	G150 1/0	1000/1270	250
  120-N2	106	4 H Satin	0.1	60*58	D450 1/2	D450 1/2	1270/1524	200
  1579A-N2	127	Plain	0.15	30*16	G150 1/2	G75 1/0	635/685/762/1219	200
  3024-N2	150	Plain	0.15	30*24	G75 1/0	G75 1/0	1000/1270	200
  2200-N2	185	Plain	0.2	16.5*17	G75 2/0	G37 1/0	1000	100
  7533-N2	200	Plain	0.2	17.5*18	G37 1/0	G75 1/3	762/1270	200
  7537-N2	160	Plain	0.2	18*22	G75 1/2	G75 1/0	762	100
  P80-N3	79	Plain	0.08	42*42	E225 1/0	E225 1/0	1020	200
