COMPOSITE MATERIALS

CARBON

---

Carbon fiber is a high-performance reinforcement material known for its exceptional strength-to-weight ratio, stiffness, and fatigue resistance. It delivers superior structural performance while remaining significantly lighter than traditional materials, making it ideal for demanding applications. Carbon fiber is widely used in industries such as aerospace, automotive, energy, and sporting goods where precision, durability, and weight reduction are critical.

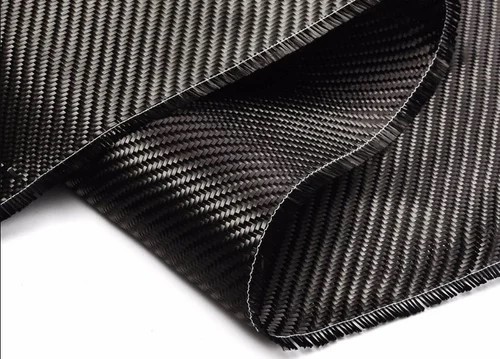

• Woven Fabrics

  3K CARBON FABRIC
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (m)
  C317P	Plain	165	0.23	1000/1270/1500	50
  C320P	Plain	200	0.25	1000/1270/1500	50
  C320T	2x2 Twill	200	0.25	1000/1270/1500	50
  C324T	2x2 Twill	240	0.3	1000/1270/1500	50/100
  C324P	Plain	240	0.3	1500	50
  C327T	4x4 Twill	270	0.3	1500	20
  C323E	Honey Comb	230	0.3	1270	30
  C326H	Hounds Tooth	260	0.3	1270	50

  12K CARBON FABRIC
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (m)
  C1242P	Plain	420	0.41	1500	50
  C1242T	2x2 Twill	420	0.41	1000/1500	50
  C1260P	Plain	600	0.65	1500	50
  C1260T	2x2 Twill	600	0.65	1000/1500	50

  SPREAD TOW
  Product Code	Style	Weight (g/sqm)	Width Tape (mm)	Width (mm)	Roll Length (m)
  S200P	Plain	200	8	1200/1270/1500	50

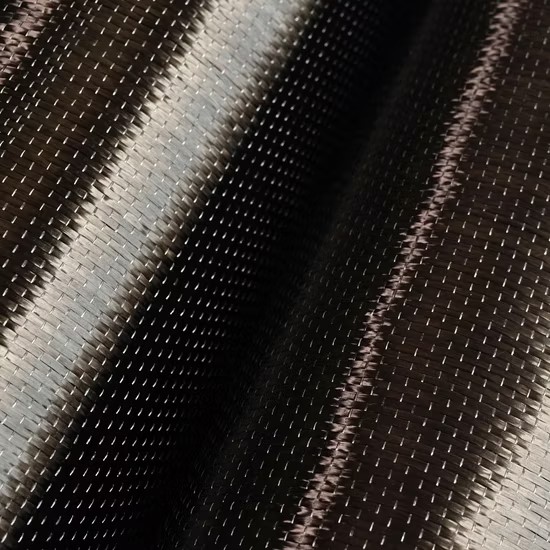

• Unidirectional Fabrics

  CARBON UNIDIRECTIONAL FABRIC
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (m)
  UC200	Unidirectional	200	0.25	500	50
  UC300	Unidirectional 9x8	300	0.3	500/1000	50/100
  UC300F	Unidirectional 9x4	300	0.3	500/1000	50/100
  UC400	Unidirectional	400	0.4	500/1000	50/100

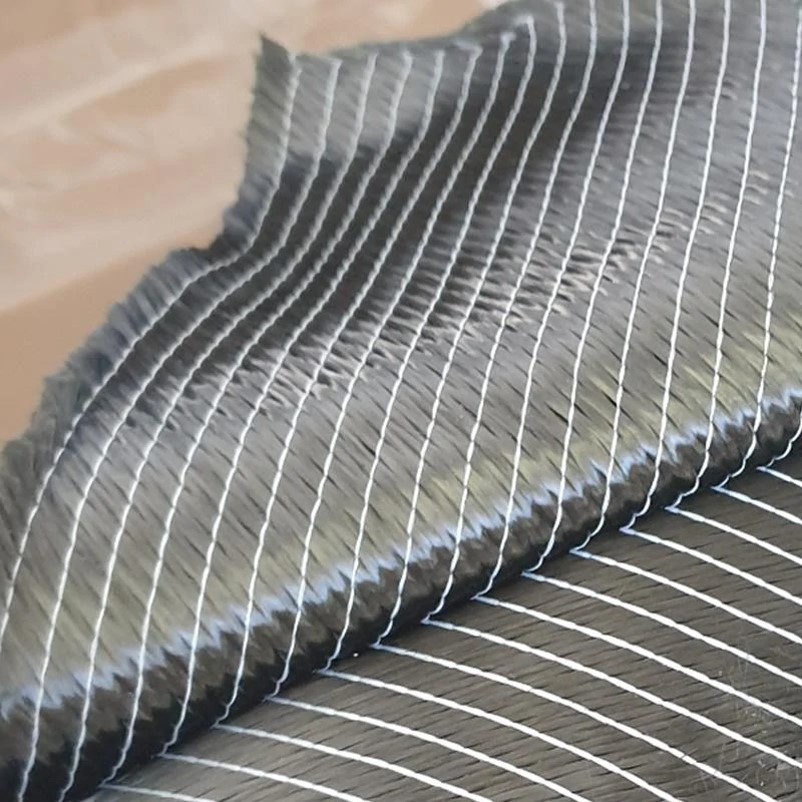

• Multiaxials

  CARBON BIAXIAL
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (KG)
  DB150-C	Biaxial +/-45	150	0.19	1270	50
  DB200-C	Biaxial +/-45	200	0.25	1270	50
  DB300-C	Biaxial +/-45	300	0.37	1270	50/100
  DB400-C	Biaxial +/-45	400	0.5	1270	50
  DB600-C	Biaxial +/-45	600	0.65	1270	50
  DB800-C	Biaxial +/-45	800
  DB1200-C	Biaxial +/-45	1200

  GLASS COMBO MAT
  Product Code	Style	Weight (g/sqm)	Thickness (mm)	Width (mm)	Roll Length (m)
  CB600/300	-	900	-	1000	-
